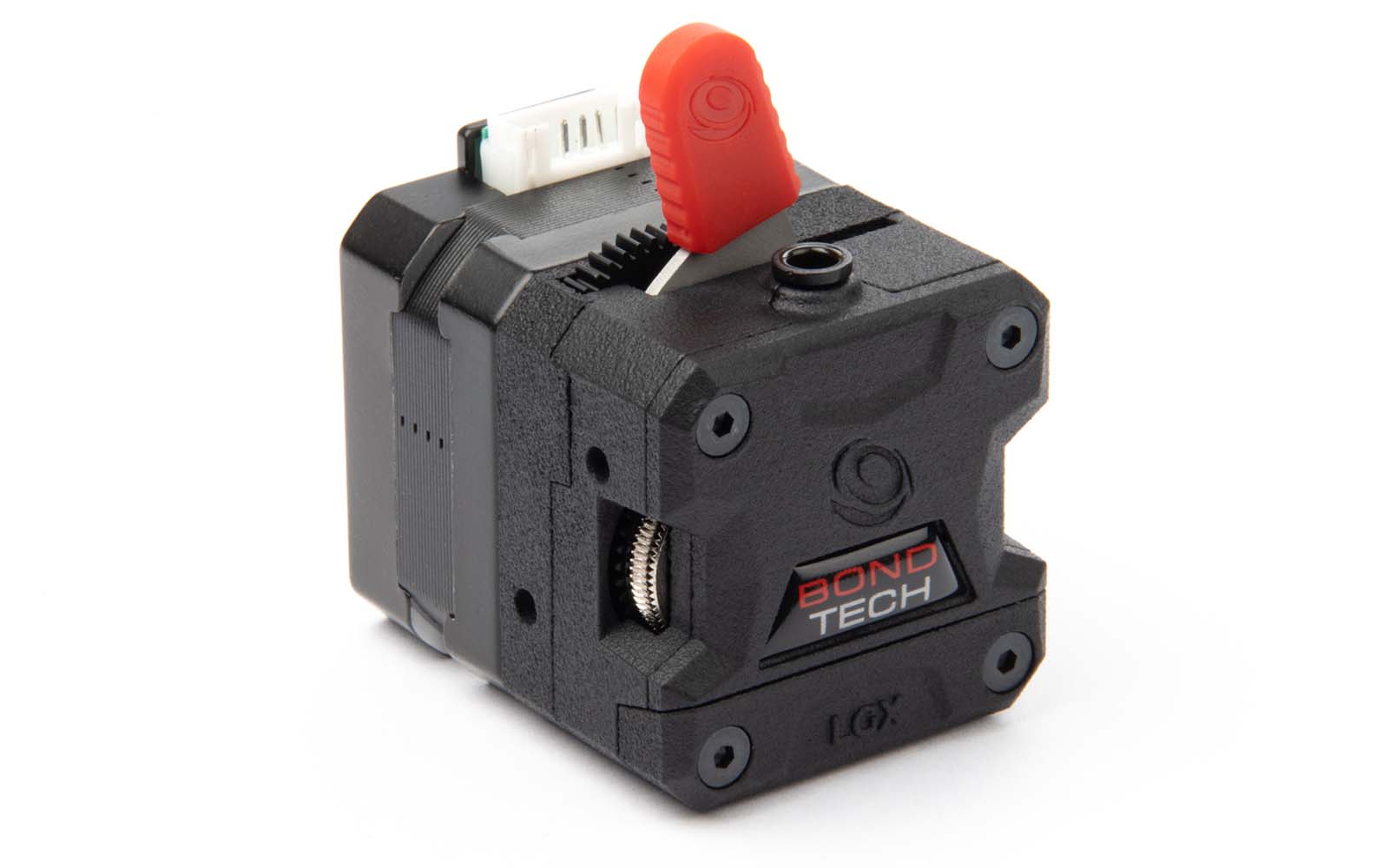

Bondtech LGX Large Gears eXtruder

Bondtech LGX Large Gears eXtruder


Regular price £99.99
Regular price Sale price £99.99
Sale Sold out
Tax included. Shipping calculated at checkout.

Each LGX® extruder is supplied with:

  • 1x LGX® feeder;
  • 1x Custom Nema17 25mm pancake stepper motor;

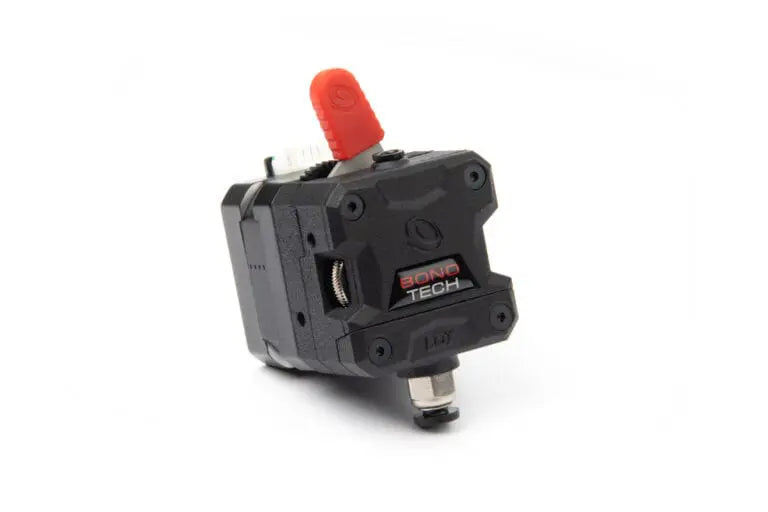

  • 1x Bowden Interface Plug (with threaded metal push-fit);

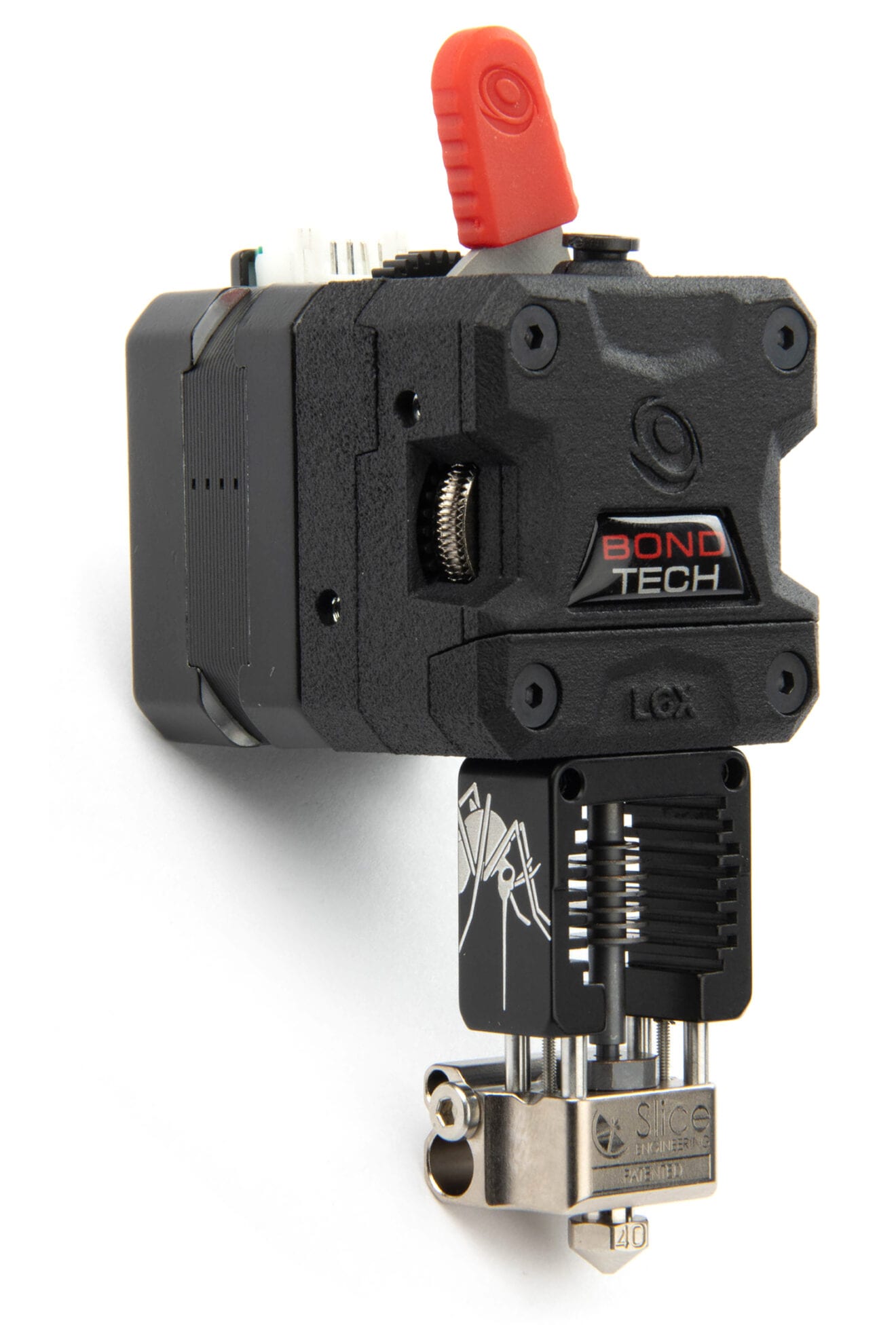

  • 1x Direct Drive Interface Plug (for Slice Engineering hotends);
  • 1x 2mm Hex Key (recommended tool);
  • 1x Product Line Information Brochure;
  • 1x Powered By Bondtech sticker.

Now also shipping with additional accessories:

  • 3x M3x30 mm Low Head screws;
  • 4x M3x18 mm Stud with 5mm Hex with M3x4 thread;
  • 30mm PTFE tube to use in the Direct Drive Interface Plug.

This extruder only supports 1.75 mm size filament.

he Bondtech LGX® Large Gears eXtruder is the first of our filament feeders using Bondtech’s new Dual Drive Technology based on larger drive gears.

7 new features on a Bondtech eXtruder:

  • Larger drive wheels, for increased filament grip;
  • Filament pre-tension lever, for repeated results;
  • Multi-function interface socket, for tool or application quick swap;
  • Drive wheels’ maintenance windows, for easy cleaning;
  • Compact, light & symmetric design, for increased performance and compatibility;
  • Multiple mounting hole patterns, for easy and flexible setup;

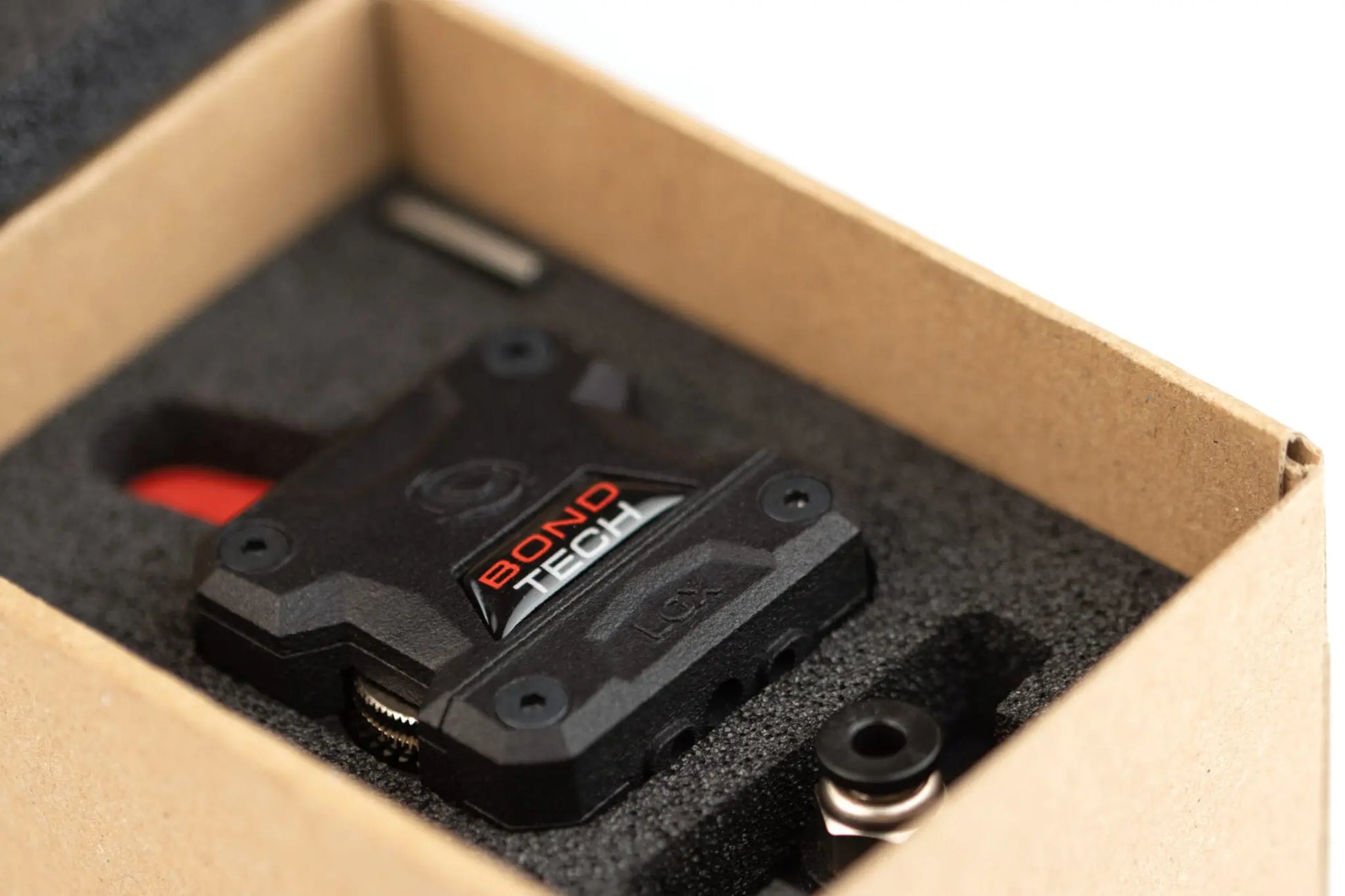

  • A small step for a greener Future, craft boxes without bleaching & no coating.

You can read more about the new features by clicking here.


3D Printed Housing using PA12

The housing parts are professionally printed with nylon for maximum strength and precision and higher temperature resistance.


Use the supplied studs to replace the 4 screws of the stepper motor and use them as additional mounting points.

Be aware the stepper motor threads are made of Aluminum, and they are delicate.
Don’t use too much Torque to tighten the studs.
Preferably use finger force only.

You can find these studs on the accessories bag in your LGX® package.

They have a M3 thread with 4 mm depth.


Do not connect a LGX® stepper motor to a printer's cable without checking the wires and pins of the connection cable.

Not all printers are ready for a direct connection with the LGX®. Some use stepper drivers with no protection and this may damage them.

Before connecting a LGX® to any 3D printer check if the connector pins are wired as shown below:

After start of service, if the LGX® is turning in the wrong direction, swap the top (or bottom) pair of wires to make a correction:
