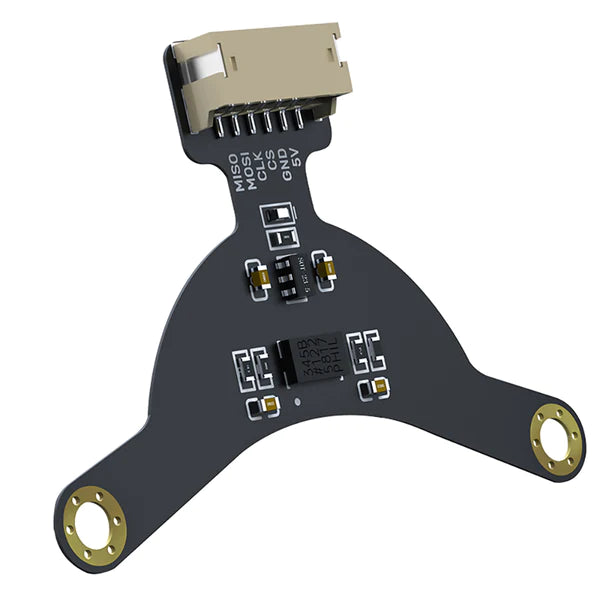

BigTreeTech ADXL345 Accelerometer Board

The ADXL345 V1.0 is a three-axis accelerometer board. It can be connected to the motherboard through the ZH1.5 6Pin socket.

ADXL345 is a 3-axis accelerometer with an optional measurement range of ±2 g, ±4 g, ±8 g or ±16 g, 13-bit resolution. The ability to measure both dynamic accelerations due to motion or shock, as well as stationary acceleration, such as gravitational acceleration, allows the device to function as a tilt sensor.

The ADXL345BCCZ three-axis accelerometer needs to have a stable installation plane. If not, it will affect its measurement accuracy.

Note that the board is powered by 5V, and 5V and GND cannot be reversely connected.
