BigTreeTech Manta M4P

BigTreeTech Manta M4P

BiquBTT

£39.99
£39.99
Sale Sold out
Tax included. Shipping calculated at checkout.

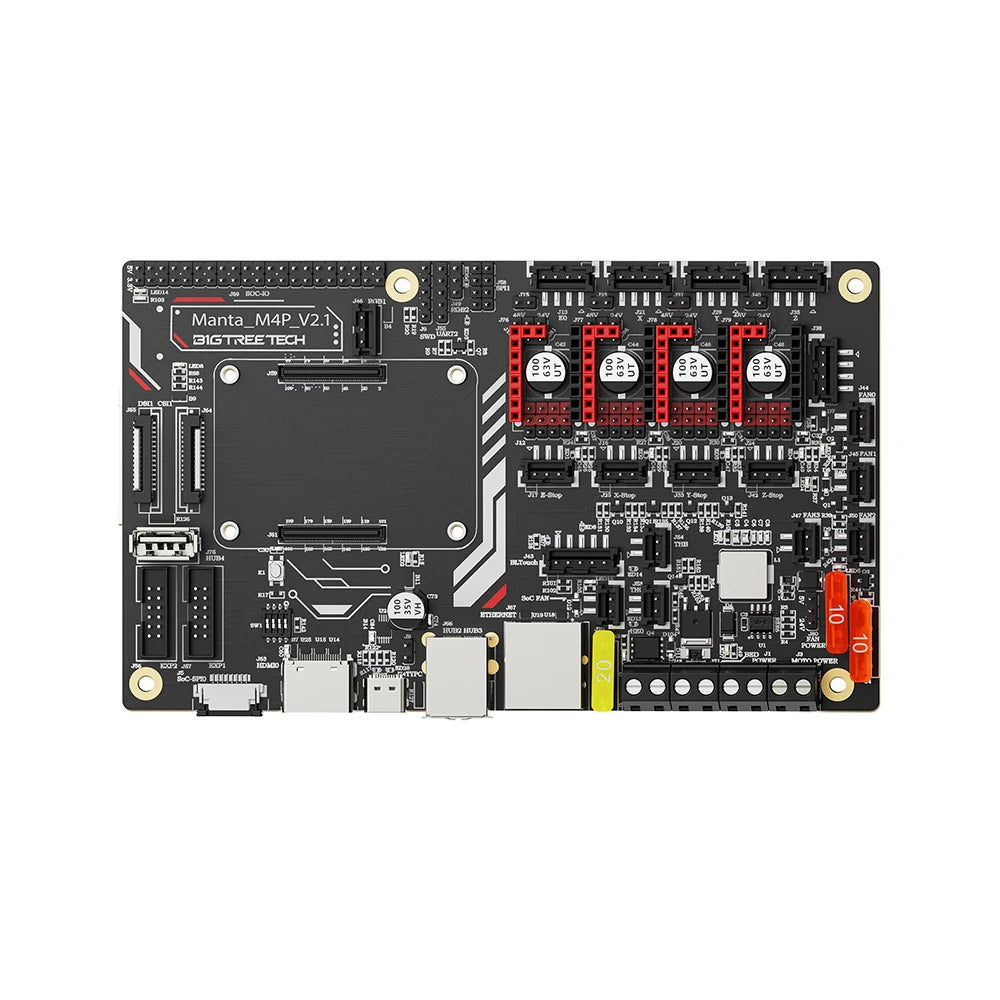

  • The Manta M4P control board can plug directly into the BIGTREETECH CB1 or Raspberry Pi CM4 to run a Linux system or use Klipper firmware - no need for a separate Raspberry Pi. Manta M4P can also run Marlin firmware independently without CB1/CM4.
  • Multifunctional: Manta M4P is equipped with 32-bit main frequency 64 MHz ARM Cortex-M0+ series STM32G0B0RE, compatible with all versions of CM4, can support Raspberry Pi TPS5450-5A power supply chip, supports consumable detection, BLTouch, RGB lights and other functions.
  • Super security: the power supply chip uses TPS5450-5A, which supports DC12/24V power supply, the output current of the chip is up to 5A and the peak value is up to 6A, which perfectly supports the power supply of the core board. The protection circuit of the thermistor part prevents the main control chip from being burned due to leakage of the heating core.
  • Easy to install: The Manta M4P is equipped with a BTB connector socket that corresponds to the ecology of the Raspberry Pi. It is easy to install the CB1, which is compatible with CM4 and other Raspberry Pi accessories, and the four corner screws provide a firm fixing.
