BigTreeTech PAD 7

Product Profile

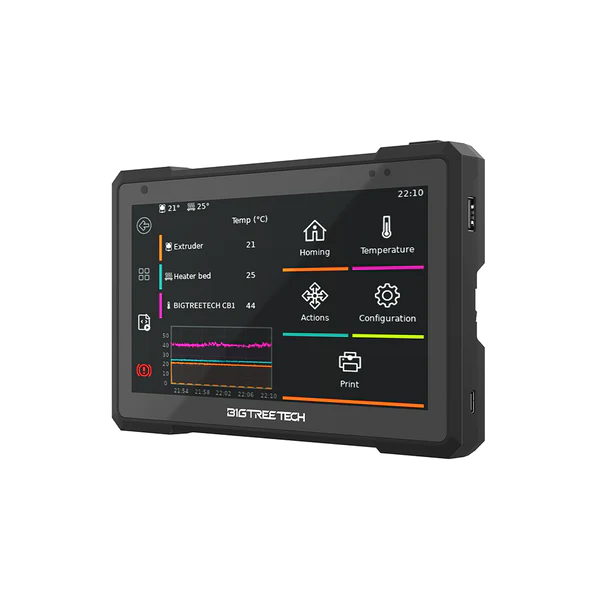

The BIGTREETECH Pad 7 is a tablet featuring Klipper and Klipper Screen pre-installed. BTB headers are designed to allow customers to choose from CM4, CB1, and other solutions.

Specifications

1. Dimensions: 185.7 x 124.78 x 39.5 mm
2. Display Viewing Area: 154.2 x 85.92 mm
3. Display: 7 inches, 1024 x 600, 60Hz Refresh Rate
4. Viewing Angle: 178°
5. Brightness: 500 Cd/m²
6. Input: DC12V 2A
7. Rated Power: 7.3 W
8. Display Port: HDMI
9. Touch Port: USB-HID
10. PC Connection: Type-C (CM4 eMMC Writing OS)

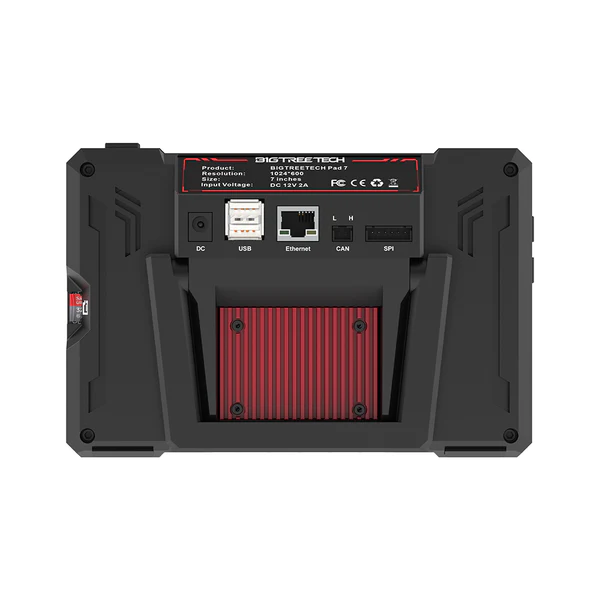

11. Interface: USB 2.0 x 3, Ethernet, CAN, SPI, SOC-Card
12. Core Board: BIGTREETECH CB1 V2.2, 1GB, with a SanDisk 32 GB Memory Card

Feature Highlights

1. 1. The 7 inches IPS touch screen provides a wider field of view, a more detailed display, and a more comfortable user experience;

2. A speaker is built in, and you can adjust the volume with the volume buttons;

3. Designed with a 3.5mm headphone jack for connecting headphones or speakers;

4. The vibration feedback enhances the touch experience;

5. With the built-in light sensor, the backlight brightness will automatically adjust based on available light;

6. Adopt GT911 high-performance touch chip, support 5-point touch;

7. The bracket attaches securely to the Pad 7's back during storage and folding thanks to the built-in magnets, which is neat and convenient.
