Bondtech Thread Inserts

Thread insert for applications when a metal thread is needed with plastic parts.

To attach the thread in plastic, a hole is required in the correct size for the selected insert.

Insert the thread insert into plastic with heat. The easiest is to make a special tip for a soldering iron and use it to heat up and fit the insert into the plastic.

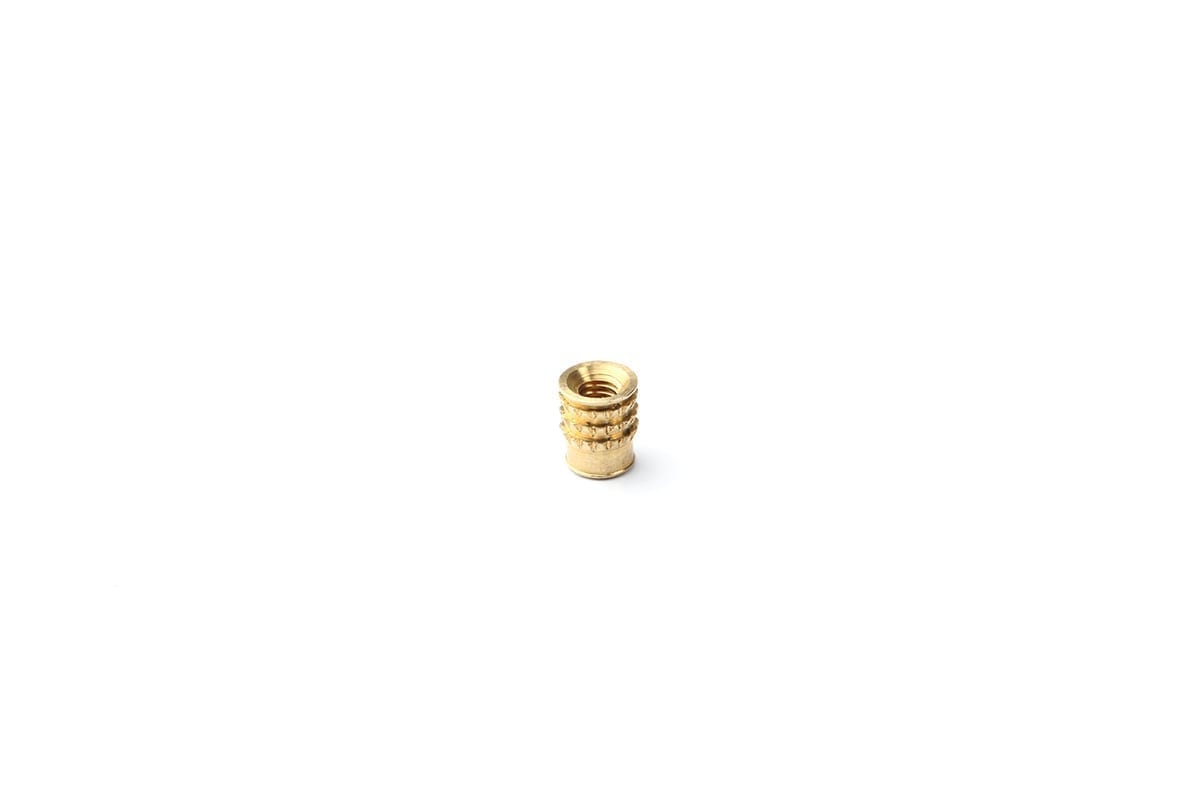

M3

Insert length: 5.2 mm
Recommended hole diameter: 4.0 mm

M4

Insert length: 5.5 mm
Recommended hole diameter: 5.6 mm

M5

Insert length: 6.6 mm
Recommended hole diameter: 6.2 mm
